Eull’s Light Pole Bases (LPB)

The LPB’s adjustable anchoring system can accommodate bolt circle diameters from 7.5 inches to 13.5 inches, making it compatible with most common light pole types.

Our universal adjustable anchoring system has been tested and independently reviewed to confirm its structural capacity. In many cases, our anchoring system has equivalent or greater capacity to that of a traditional cast-in-place J-bolt. Design calculators (BaseCalc LT and BaseCalc PRO) located on the LPB website were developed for users to verify adequacy of LPB for their specific projects.

The LPB website also contains a robust Technical Resources page which includes an Engineering Reference Manual that describes the analysis and testing procedures in more depth.

All LPBs are produced in NPCA-certified facilities, ensuring strict quality control. Each base is manufactured to consistent national standards in a controlled environment.

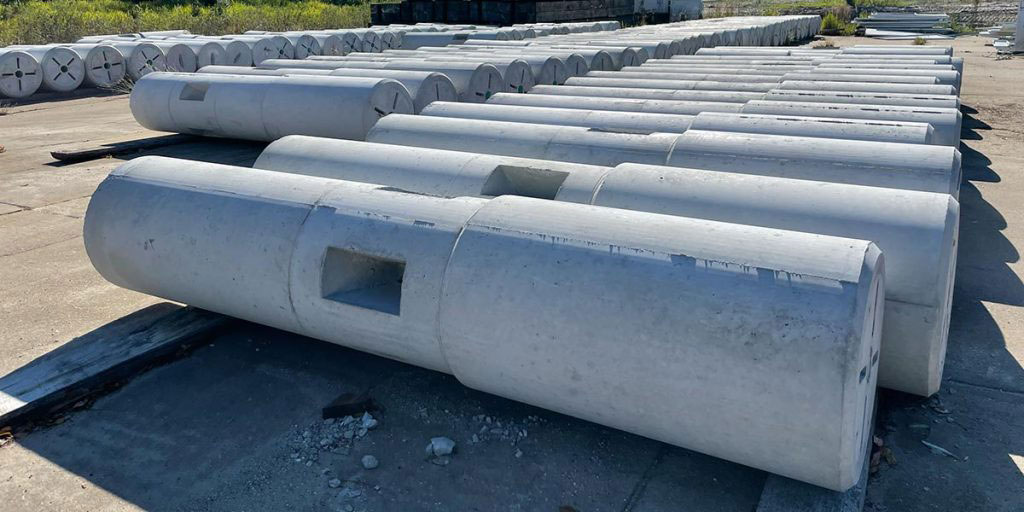

Thanks to the universal design of the anchoring system and conduit routing, LPBs are stocked by producers and available for quick shipment. This eliminates long lead times associated with traditional precast pole bases and cast-in-place pours.

Each base includes four large below-grade side openings leading to a 4” diameter central vertical pathway, accommodating conduit from all directions for flexible wiring layouts.
The 4” diameter central vertical pathway can accommodate the following number of conduits: (5) – ¾” conduits, (3) – 1” conduits, (2) – 1 ¼” conduits.

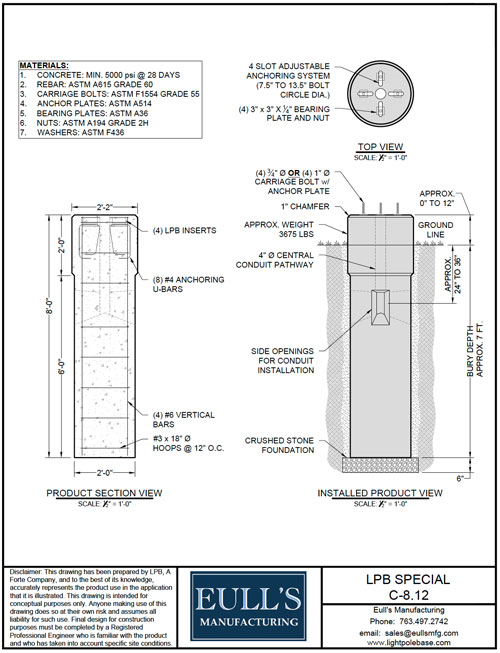

LPB’s can be made in many possible configurations which include different lengths and different exposed heights above grade. It is recommended to contact your local producer to verify what models they keep in stock. The most common LPB sizes are:

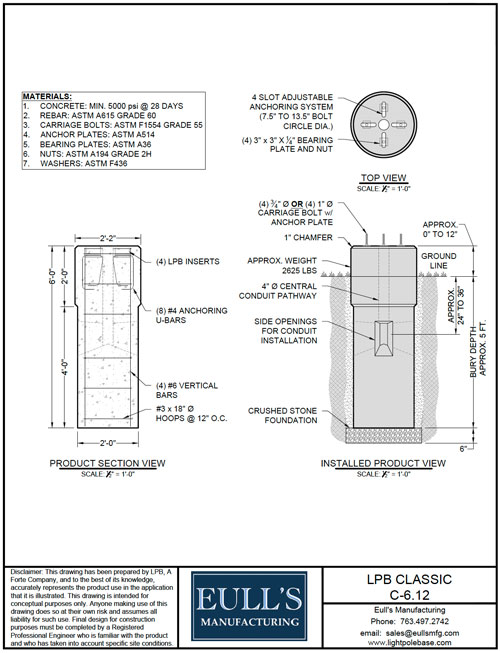

• 6’ Classic LPB: Exposed height up to 12” above grade, 24” diameter, approx. 2,625 lbs

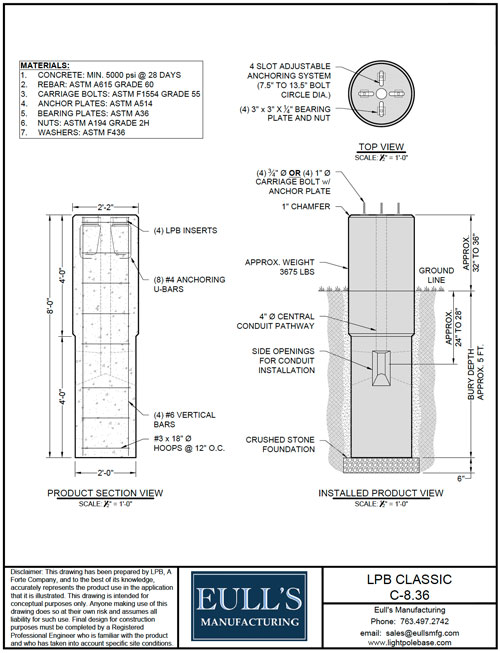

• 8’ Classic LPB: Exposed height up to 36” above grade, 24” diameter, approx. 3,675 lbs
